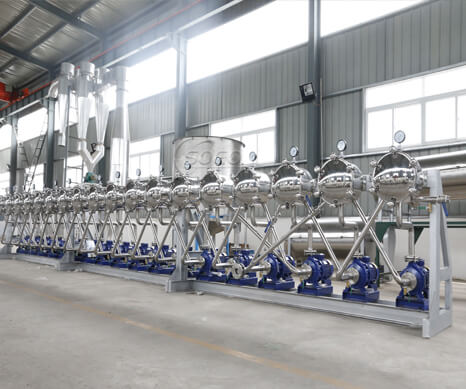

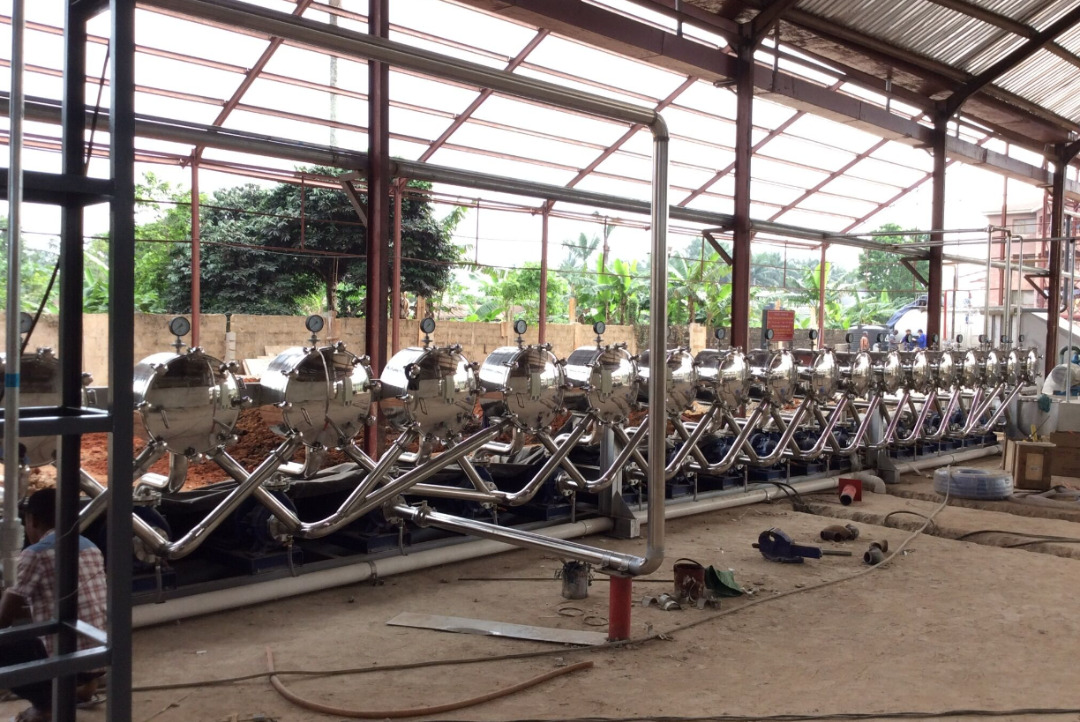

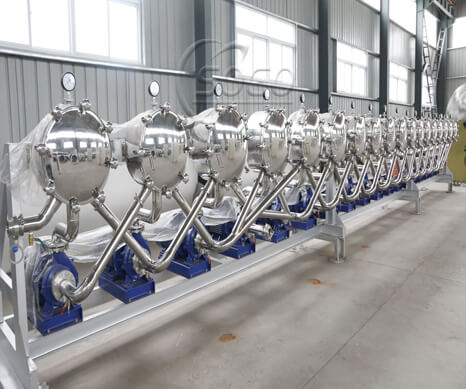

Hydrocyclone Unit

The technical processing of hydrocyclone unit

The main function of the hydrocyclone is to remove the fine fibers, protein and cell fluid in the starch milk to concentrate and finely wash the starch milk. The main purpose of the multi-stage cyclone station is to remove soluble and insoluble protein, fine fiber, sugar and purify starch milk.The general full hydrocyclone process includes three main part,

1. Concentration,

2. Recovery

3. Washing & Refining

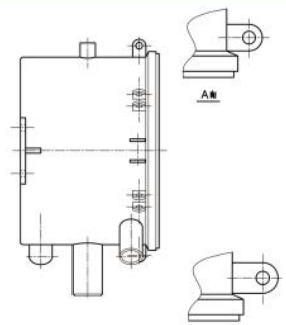

The structure of Hydrocyclone Unit

1. The main body of the equipment is made of high-quality stainless steel to ensure that the material is not eroded.
2. The surface of the equipment is treated by special technology, which is oil-resistant and dirt-resistant.
3. The swirl tube is made of FDA-certified nylon, which is high-energy and efficient.
4. The multi-stage swirl station integrates concentration and recycling , washing and fine slag separation and other functions in one, simple and reasonable, beautiful and generous, stable product quality, welcomed by large and medium-sized starch enterprises.

The Advantage of Hydrocyclone Unit

1. It adopts the latest combined structure of concentration, recovery and washing, which can ensure more stable system operation, more reliable control, higher product quality, less water consumption, and can achieve the goal of almost no powder running out of recovery overflow.
2. The best sealing structure ensures that each chamber does not leak, the front cover can be opened quickly, and the swirl tube seat can be taken out quickly, making cleaning and maintenance more convenient.
3. High outletconcentration, high washing efficiency, less stages required, good product quality, low energy consumption.
4. The cyclonesnozzle is made of FDA-certified high-wear-resistant engineering plastics and has a long service life.
5. Use mid-high pressure for more efficient washing.
6. The very stable control system designed by ourselves ensures the production of higher product quality;

The Application of Hydrocyclone Unit

Hydrocyclone Unit is mainly used to remove the fine fibers, protein and cell fluid in the starch milk to concentrate and finely wash the starch milk, and is widely used in various starch processing industries such as,tapioca starch, sweet potato starch, potato starch, corn starch and so on.

1. Cassava starch processing line
2. Potato starch processing line
3. Sweet potato starch processing line
