What is the series structures of filter press for dewater in cassava flour processing plant?

What is the series structures of filter press for dewater in cassava flour processing plant?

Filter presses is usually used for solid-liquid separation of suspensions in food industries. In the process of cassava flour production line, the cassava slurry is separated from solid and liquid, so as to achieve the purpose of dehydration. So what is the series structures of filter press for de-water in cassava flour processing plant,The filter press of our company has five major components: machine frame, filter part, hydraulic part, unloading device and electrical control part. The series structures of filter press as bellow,

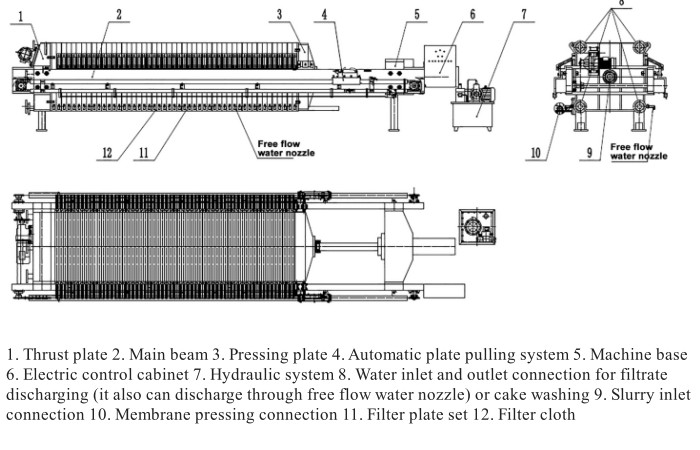

Figure 01 Structure diagram of program controlled membrane filter press,refer to drawing.

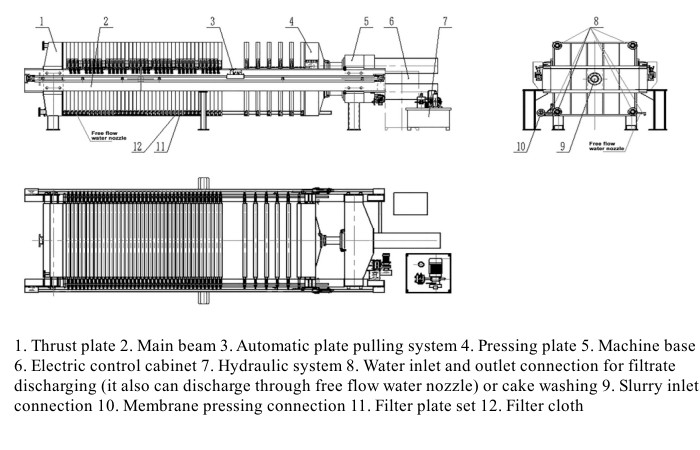

Figure 02 Structure diagram of high efficiency energy saving quick filter press (note: reversing plate and water washing system),refer to drawing.

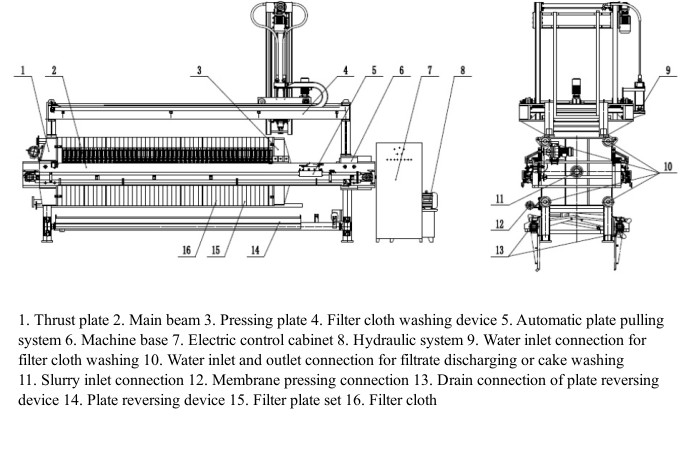

Figure 03 Program controlled membrane filter press with reversing plate and water washing device,refer to drawing.

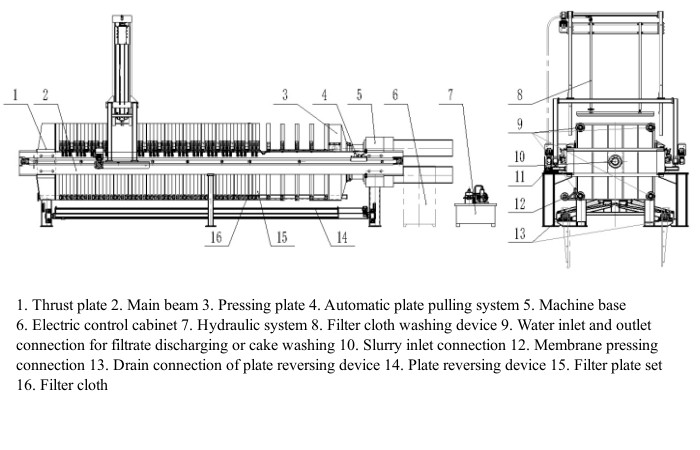

Figure 04 Program controlled automatic high efficiency filter press with reversing plate and water washing device,refer to drawing.
